JCGE Documentation

A lightweight 2D game engine built with vanilla JavaScript and HTML5 Canvas. No build tools, no dependencies.

Getting Started

Create an HTML file, include the engine script, and write your game inside an engineReady listener.

<!-- index.html -->
<script src="path/to/engine/engine-core.js"></script>
<canvas id="canvas"></canvas>
<script src="game.js"></script>

// game.js
window.addEventListener("engineReady", function() {
    var canvas = document.getElementById("canvas");
    var engine = new Engine(canvas);

    engine.jumpEngineIntro = true;
    engine.displayFPS = true;

    engine.OnCreate = function() {
        var scene = new MyScene(engine);
        engine.registerScene(scene);
    };

    engine.start();
});

Project Structure

src/
├── engine/
│   ├── engine-core.js          — script loader (include this)
│   ├── engine-parts/
│   │   ├── engine.js           — Engine class
│   │   ├── scene.js            — Scene class
│   │   └── layer.js            — Layer class
│   ├── buffer/                 — Drawer, Sprite, SpriteSheet, SpriteAtlas
│   ├── cameras/                — FixedCamera, WorldCamera
│   ├── input/                  — InputManager
│   ├── audio/                  — Sound, SoundManager
│   ├── animations/             — Tween, Easing, Animation
│   ├── ui/                     — UILayer, UIButton, UILabel, UIPanel, UICircle
│   ├── particles/              — ParticleEmitter, Presets
│   ├── physics/                — Collision helpers
│   ├── tilemap/                — Tileset, Tilemap
│   ├── isometric/              — IsometricUtils, IsometricMap, PathFinder
│   ├── lights/                 — Lighting, LightSpot
│   ├── shadows/                — ShadowSystem, ShadowCaster
│   ├── assets/                 — AssetManager
│   ├── debug/                  — DebugOverlay
│   └── util/                   — Vec2, Size, RGB, buttons, EventEmitter
├── samples/                    — demo projects
└── empty-game-project/         — starter template

Engine

The main class. Creates the game loop with requestAnimationFrame, manages scenes, and provides access to all subsystems.

var engine = new Engine(canvas);

Canvas Sizing

engine.setCanvasSize(960, 540);  // fixed dimensions
engine.setFullScreen();             // fill browser window, auto-resize

GPU Acceleration

The engine automatically enables GPU acceleration when available. The canvas context is created with alpha: false (opaque canvas, skips page compositing) and desynchronized: true (lower input latency). The canvas element is promoted to its own GPU-composited layer via will-change: transform.

Transitions

Use goToScene with a transition type:

engine.goToScene(scene, { level: 2 }, 'fade', 0.5);

Types: 'none', 'fade', 'slide-left', 'slide-right'

Scene

Scenes organize your game into screens. Override the lifecycle methods.

class GameScene extends Scene {
    constructor(engine) {
        super('GameScene', engine);
    }

    OnCreate() {
        // Runs once when scene becomes active
    }

    OnUpdate(elapsedTime) {
        // Runs every frame (elapsedTime = seconds since last frame)
    }

    OnDestroy() {
        // Runs when leaving this scene
    }
}

Drawer

Handles all canvas rendering: shapes, text, sprites, and gradients. Access via engine.drawer.

Shapes

drawer.rectangle(position, size, filled, lineWidth, color, opacity, camera);
drawer.circle(position, radius, startAngle, endAngle, filled, lineWidth, color, opacity, camera);
drawer.line(point1, point2, lineWidth, color, opacity, camera);
drawer.gradient(position, size, startPoint, stopPoint, startColor, stopColor, opacity, camera);

Text

drawer.text(text, position, fontSize, font, style, color, opacity, camera);
drawer.textWidth(text, fontSize, font, style); // returns number

Sprites

drawer.sprite(sprite, position, opacity, camera);
drawer.spriteSheet(spriteSheet, position, opacity, camera);
drawer.gameObject(gameObject, opacity, camera);

Transforms

drawer.drawRotated(sprite, position, angle, opacity);
drawer.drawScaled(sprite, position, scaleX, scaleY, opacity);
drawer.drawFlipped(sprite, position, flipX, flipY, opacity);

Utility

drawer.clearWithColor('#000');
drawer.clear();

InputManager

Provides per-frame edge detection for keyboard, mouse, touch, and gamepad. Access via engine.input.

Keyboard

input.isKeyDown(Keys.W)        // held down right now
input.isKeyPressed(Keys.Space)  // just pressed this frame
input.isKeyReleased(Keys.Escape) // just released this frame

Mouse

input.isMouseDown(0)       // 0=left, 1=middle, 2=right
input.isMousePressed(0)    // just clicked this frame
input.isMouseReleased(0)   // just released this frame
input.getMousePosition()   // Vec2 relative to canvas

Touch

input.isTouchActive()     // is there a touch on screen?

Touch events are automatically mapped to mouse events (left button).

Gamepad

input.isGamepadButtonDown(buttonIndex, padIndex)
input.getGamepadAxis(axisIndex, padIndex) // returns -1 to 1
input.getGamepad(index)                   // raw Gamepad object

Vec2

2D vector class. Point and Position are aliases for Vec2. Properties are .X and .Y.

var v = new Vec2(10, 20);

Static helpers: Vec2.zero(), Vec2.up(), Vec2.down(), Vec2.left(), Vec2.right()

GameObject

A positioned sprite with movement and collision.

var player = new GameObject(new Sprite(64, 64), new Vec2(100, 100));
player.sprite.loadImage('player.png');
player.velocity = new Vec2(100, 0);
player.move(elapsedTime);

if (player.collisionWith(enemy)) { /* AABB collision */ }

Parent-Child Attachments

Attach any GameObject or Element to a parent so it automatically follows the parent's position with an offset. Useful for turrets on tanks, HP bars above characters, etc.

// Turret follows tank body with offset
turret.attachTo(tankBody, 10, -15);

// HP bar (UILabel) follows player
hpBar.attachTo(player, 0, -20);

// Detach later
turret.detach();

The engine automatically updates child positions each frame before rendering. Works across layers — a UI element can follow a game object in a different layer.

Methods

Sprite & SpriteSheet

// Static sprite
var spr = new Sprite(width, height);
spr.loadImage('image.png');

// Animated spritesheet
// SpriteSheet(name, frameW, frameH, frameSpeed, startFrame, endFrame, imagePath)
var sheet = new SpriteSheet('run', 64, 64, 5, 0, 7, 'sheet.png');

// Attach to animation system
var anim = new Animation();
anim.registerAnimation(sheet);
player.registerAnimation(anim);
player.setAnimation('run');

SpriteAtlas

A sprite atlas holds named regions within a single image. Each region can have its own position and size, unlike a SpriteSheet which uses a uniform grid. Ideal for sprites with irregular layouts (e.g. a car with 8 directions at different positions and sizes in one image).

// Define regions: name → { x, y, width, height }
var atlas = new SpriteAtlas('assets/sprites/car.png', {
    'north':     { x: 0,   y: 0,   width: 48, height: 64 },
    'northeast': { x: 60,  y: 10,  width: 56, height: 60 },
    'east':      { x: 130, y: 5,   width: 64, height: 48 },
    'south':     { x: 270, y: 0,   width: 48, height: 64 }
}, 'north');

// Switch displayed region
atlas.setRegion('east');

// Get current region rect
var rect = atlas.getRegion();  // { x, y, width, height }

// List all region names
var names = atlas.getRegionNames();  // ['north', 'northeast', ...]

Constructor

new SpriteAtlas(imagePath, regions, defaultRegion)

Methods

Chroma Key

Remove a background color from any sprite type (Sprite, SpriteSheet, SpriteAtlas). The engine processes the image on load, replacing pixels matching the chroma key color with transparency. Useful for sprites with solid-color backgrounds (green, blue, purple, etc.).

// Remove green background from a sprite
var spr = new Sprite(64, 64, 'player.png');
spr.setChromaKey('#00FF00');

// With custom tolerance (default is 30, range 0–255)
spr.setChromaKey('#00FF00', 50);

// Works on SpriteSheet too
var sheet = new SpriteSheet('run', 64, 64, 5, 0, 7, 'sheet.png');
sheet.setChromaKey('#FF00FF', 20);

// And on SpriteAtlas
atlas.setChromaKey('#0000FF');

Method

sprite.setChromaKey(color, tolerance)

Layers

Z-ordered rendering groups within a scene.

var bgLayer = new Layer('background');
bgLayer.registerElement(bgElement);
scene.registerLayer(bgLayer);

var uiLayer = new Layer('ui');
uiLayer.registerGameObject(cursor);
scene.registerLayer(uiLayer);

Layers are drawn in registration order (first = behind, last = in front).

UILayer

A screen-space layer that is not affected by camera movement. Use it for HUD elements, menus, and overlays that should stay fixed on screen.

var hud = new UILayer('hud');
hud.registerElement(button);
hud.registerElement(label);
hud.registerElement(panel);
scene.registerLayer(hud);

UIButton

An interactive button element. Supports sprite-based or color-fallback rendering, hover/press states, and click callbacks.

var btn = new UIButton(
    new Vec2(100, 400),
    new Size(160, 45),
    {
        label:        'Play',
        fontSize:     16,
        fontFamily:   'monospace',
        fontColor:    'white',
        normalColor:  '#2a4a6a',
        hoverColor:   '#3a6a8a',
        pressedColor: '#1a3a5a',
        onClick: function() { /* start game */ }
    }
);
hud.registerElement(btn);

Use btn.showIt = false to hide/show the button dynamically. Properties isHovered, isPressed, and isDisabled are available for state checks.

UILabel

A text element for screen-space text display. Update text dynamically with setText().

var label = new UILabel('Score: 0', new Vec2(20, 30), {
    fontSize:   14,
    fontFamily: 'monospace',
    fontStyle:  'bold',
    color:      '#44aaff'
});
hud.registerElement(label);

// Update text each frame:
label.setText('Score: ' + score);

UIPanel

A rectangular background panel for grouping UI elements visually.

var panel = new UIPanel(
    new Vec2(10, 10),
    new Size(200, 80),
    {
        fillColor:   'rgba(10, 10, 30, 0.85)',
        borderColor: '#334455',
        borderWidth: 1
    }
);
hud.registerElement(panel);

UICircle

A circle shape element. Extends Element.

var circle = new UICircle(
    new Vec2(100, 100),
    {
        radius:      30,
        fillColor:   '#3498db',
        borderColor: '#2980b9',
        borderWidth: 2
    }
);
layer.registerElement(circle);

Camera

var cam = new Camera(screenW, screenH, worldW, worldH);
cam.addOffset = true;  // enable camera-relative drawing
scene.setCamera(cam);

WorldCamera

Extends Camera with smooth follow, shake, and zoom.

var cam = new WorldCamera(screenW, screenH, worldW, worldH);
cam.addOffset = true;
cam.smoothFollow = true;
cam.followLerp = 0.1;      // 0 = no follow, 1 = instant

// In OnUpdate:
cam.setPositionTo(gameObject, elapsedTime);
cam.update(elapsedTime);

Tilemap

var tileset = new Tileset('tileset.png', 32, 32);
var mapData = [[0,1,2], [3,4,5]];
var tilemap = new Tilemap(tileset, mapData, cols, rows);

Particles

Built-in Presets

var fire      = ParticleEmitter.fire(engine, position);
var smoke     = ParticleEmitter.smoke(engine, position);
var explosion = ParticleEmitter.explosion(engine, position);
var sparkle   = ParticleEmitter.sparkle(engine, position);

// In OnUpdate:
fire.draw(elapsedTime);

Custom Emitter

var emitter = new ParticleEmitter(engine, {
    position:   new Vec2(100, 100),
    rate:       10,           // particles per emission
    minSpeed:   20,  maxSpeed:  100,
    minAngle:   0,   maxAngle:  Math.PI * 2,
    minLife:    0.5, maxLife:   2,
    minSize:    2,   maxSize:   6,
    startColor: new RGB(255, 200, 50),
    endColor:   new RGB(255, 50, 0, 0),
    gravity:    new Vec2(0, 100),
    shape:      'circle'    // or 'rectangle'
});

Tweens & Easing

Animate any numeric property on any object. Managed by engine.tweens.

// Animate position over 1 second
engine.tweens.to(player.position, { X: 300, Y: 200 }, 1.0, Easing.easeInOut)
    .onComplete(function() { /* done */ });

// Chain tweens
engine.tweens.to(obj, { X: 100 }, 0.5, Easing.easeIn)
    .then(obj, { Y: 200 }, 0.5, Easing.easeOut);

Easing Functions

linear easeIn easeOut easeInOut easeInCubic easeOutCubic easeInOutCubic bounce elastic

Collision

Static utility functions for collision detection.

Collision.rectRect(posA, sizeA, posB, sizeB);
Collision.circleCircle(posA, radiusA, posB, radiusB);
Collision.circleRect(circlePos, radius, rectPos, rectSize);
Collision.pointRect(point, rectPos, rectSize);
Collision.pointCircle(point, circlePos, radius);

All return true if collision detected.

EventEmitter

Pub/sub events for decoupled communication.

var events = new EventEmitter();
events.on('scoreChange', function(score) { /* ... */ });
events.once('gameOver', function() { /* fires once */ });
events.emit('scoreChange', 100);
events.off('scoreChange', callback);
events.removeAll('scoreChange'); // or removeAll() for all events

Sound

// Direct playback
var jump = new Sound('jump.mp3');
jump.play();

// Via SoundManager (recommended)
engine.sound.setMasterVolume(0.8);
engine.sound.setMusicVolume(0.5);
engine.sound.setSFXVolume(1.0);
engine.sound.playMusic(bgMusic);   // looping, stops previous
engine.sound.playSFX(jumpSound);    // one-shot
engine.sound.muteAll();
engine.sound.unmuteAll();

AssetManager

Preload assets before the game starts. Access via engine.assets.

engine.assets
    .loadImage('player', 'sprites/player.png')
    .loadSound('jump', 'audio/jump.mp3')
    .onProgress(function(loaded, total) { })
    .onComplete(function() { engine.start(); });

engine.assets.startLoading();

// Later:
var img = engine.assets.getImage('player');
var snd = engine.assets.getSound('jump');

Lighting

2D lighting system using an offscreen canvas with radial gradients. Supports colored lights, flickering, and camera integration.

var lighting = new Lighting(engine);
lighting.ambientAlpha = 0.85;   // darkness level (0 = no dark, 1 = pitch black)
lighting.ambientColor = 'black';

// Add lights
var torch = new LightSpot(new Vec2(200, 150), new RGB(255, 160, 50), 180, 0.9);
torch.flicker = 0.25;           // flicker amount 0-1
lighting.addLightSpot(torch);

// In OnUpdate (draw AFTER scene, BEFORE UI):
lighting.draw(elapsedTime, camera);

Shadows

2D directional shadow system using an offscreen canvas. Shadows are projected based on a global light angle and rendered with configurable blur and opacity. Overlapping shadows do not stack darker.

var shadows = new ShadowSystem(engine);
shadows.lightAngle   = 225;             // degrees, where light comes FROM
shadows.shadowLength = 80;              // projection distance in pixels
shadows.shadowOpacity = 0.4;            // composite alpha
shadows.blur          = 4;              // soft shadow blur radius

// Add casters
var crate = new ShadowCaster(
    new Vec2(100, 200),       // position (can share reference with a GameObject)
    new Size(50, 50),        // footprint size
    'rectangle',              // type: 'rectangle' or 'ellipse'
    1.0                       // heightScale (taller objects = longer shadow)
);
shadows.addCaster(crate);

// Tall pillar with longer shadow
shadows.addCaster(new ShadowCaster(new Vec2(300, 150), new Size(20, 20), 'rectangle', 2.5));

// Tree with ellipse shadow
shadows.addCaster(new ShadowCaster(new Vec2(500, 120), new Size(40, 40), 'ellipse', 2.0));

// In OnUpdate (draw BEFORE objects so shadows appear behind):
shadows.draw(camera);

Debug Overlay

Toggle debug visuals via engine.debug.

engine.debug.showCollisionBoxes = true;
engine.debug.showCameraBounds   = true;
engine.debug.showObjectCount    = true;

IsometricUtils

Static utility class for isometric coordinate conversion. No instance needed — all methods are static.

// Grid to screen
var screen = IsometricUtils.toScreen(5, 3, 64, 32, 2, 16, offset);

// Screen to grid (approximate, ignores height)
var grid = IsometricUtils.toGrid(mouseX, mouseY, 64, 32, offset);

// Diamond vertices for hit testing
var verts = IsometricUtils.getDiamondVertices(sx, sy, 64, 32);

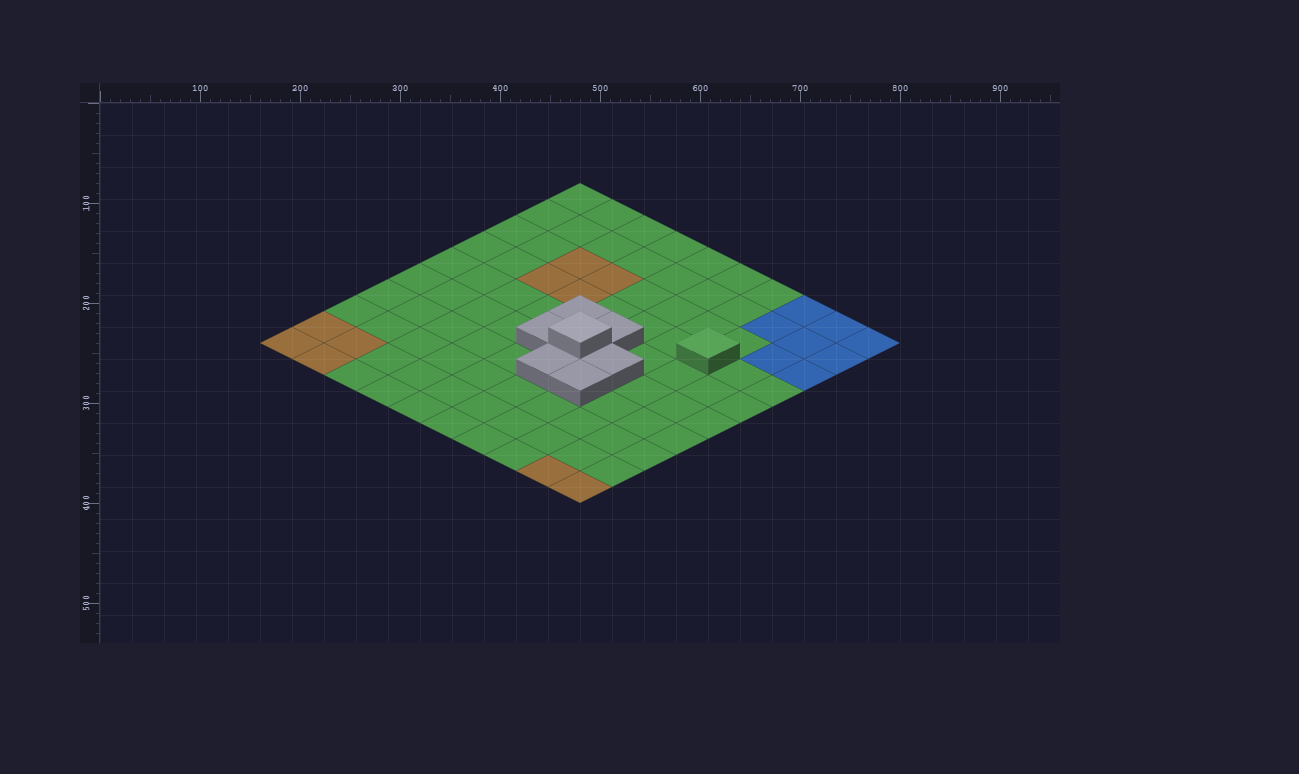

IsometricMap

Height-aware isometric tilemap with collision detection, depth-sorted rendering, and height-based mouse picking.

Constructor

var map = new IsometricMap(cols, rows, tileWidth, tileHeight, heightStep);

Properties

Methods

Entity Callback

The draw() method accepts an optional callback for depth-sorted entity rendering. The callback is called once per tile during the back-to-front traversal:

map.draw(drawer, camera, function(col, row, screenX, screenY) {
    // Draw entities that belong to this tile
    if (player.col === col && player.row === row) {
        drawPlayer(ctx, screenX, screenY);
    }
});

PathFinder

Static A* pathfinding for isometric maps. Respects walkability and height constraints.

Cost Model

• 4-directional movement (N, S, E, W on grid)
• Flat movement cost: 1.0
• Height change cost: 1.5
• Movement blocked if height difference > 1 or tile is unwalkable
• Manhattan distance heuristic

var map = new IsometricMap(20, 20, 64, 32, 16);
// ... populate tiles, heightMap, collisionMap ...

var path = PathFinder.findPath(map, 0, 0, 10, 10);
if (path.length > 0) {
    // Walk each waypoint: path[i].col, path[i].row
    for (var i = 0; i < path.length; i++) {
        console.log(path[i].col, path[i].row);
    }
}

Game Loader

For games with many script files, use the loader to load them sequentially after the engine is ready.

<script src="engine/engine-core.js"></script>
<script src="engine/game-loader.js"></script>
<script>
    loader([
        { name: "Player", path: "player.js" },
        { name: "Scene",  path: "scenes/game.js" }
    ]);
</script>

Then listen for gameReady instead of engineReady:

window.addEventListener("gameReady", function() { ... });

RGB

var color = new RGB(255, 100, 50, 0.8); // r, g, b, alpha
color.toString();             // "rgb(255, 100, 50, 0.8)"
color.toStringWithoutAlpha(); // "rgb(255, 100, 50)"

Size

var s = new Size(100, 50); // s.width, s.height

Keys & MouseButton

Constants for input detection. Uses KeyboardEvent.code values.

Tests

The engine and editor both include unit test suites powered by Vitest. Tests cover the pure-logic parts of the codebase: math utilities, collision detection, animations, pathfinding, event system, and the editor's state management.

Zero-dependency architecture

The engine itself is pure vanilla JavaScript with no npm dependencies. It loads via a single <script> tag and runs directly in the browser. The node_modules folder and package.json inside src/engine/ exist only for the test runner — they are not used at runtime and do not affect the engine in any way. You can safely delete them and the engine will continue to work exactly the same. They are only needed if you want to run the tests.

How the engine tests work

Engine source files declare global classes (class Vec2, class Tween, etc.) without export statements, since they are designed for <script> tag loading in browsers. To test them in Node.js, the test setup file reads each source file with fs.readFileSync, transforms the declarations into globalThis assignments, and evaluates them with vm.runInThisContext. This makes all engine classes available as globals inside tests, exactly as they would be in a browser.

Running the tests

# Engine tests (181 tests across 8 files)
cd src/engine
npm install     # one-time: installs vitest
npm test        # runs all tests
npm run test:watch  # re-runs on file changes

# Editor tests (92 tests across 2 files)
cd jcge_editor
npm install     # one-time: installs vitest + other deps
npm test
npm run test:watch

Test coverage

Adding new tests

For the engine: create a .test.js file in src/engine/tests/. If your test uses a class that isn't loaded yet, add its source file path to the files array in tests/setup.js. The class will then be available as a global in your test.

For the editor: place test files in a __tests__/ directory next to the module being tested, or anywhere Vitest can discover them. Editor modules use standard ES imports, so no special setup is needed.
